Features
ClubSport Steering Wheel F1® Esports V2:
- Officially licensed by Formula 1™
- Replica of a steering wheel as used in formula cars. The compact diameter of 270 mm allows fast movements and reactions
- Durable metal construction
- Genuine Alcantara® grips
- Magnetic paddle shifters (CSL Elite Magnetic Paddle Module, preinstalled)
- 3 mm-thick, black anodised aluminium paddle plates
- Paddle module cage made of polymer composite
- Neodymium magnets
- Easily upgradable to ClubSport Magnetic Paddle Module or Podium Advanced Paddle Module (sold separately)
- 11 buttons
- Analogue joystick
- 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Two vibration motors integrated with the grips, controllable through wheel Tuning Menu (SHO) or by game through Fanatec SDK
- RevLEDs with nine multi-colour RGB LEDs to show motor RPM and optimal shifting point, programmable by the user via FanaLab and by game developers via the Fanatec SDK
- Two FlagLEDs with three multi-colour RGB LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, programmable by the user via FanaLab and by game developers via the Fanatec SDK
- Vibrant blue LED display to show telemetry data such as speed or gear selection (in supported games)
- Tuning functions with LED display to adjust settings independent from the game and during gameplay (see description of compatible wheel base / racing wheel for details)
- Improved electronics means wheel is firmware-updatable
- QR2 Lite Wheel-Side upgrade included (must be installed before use)

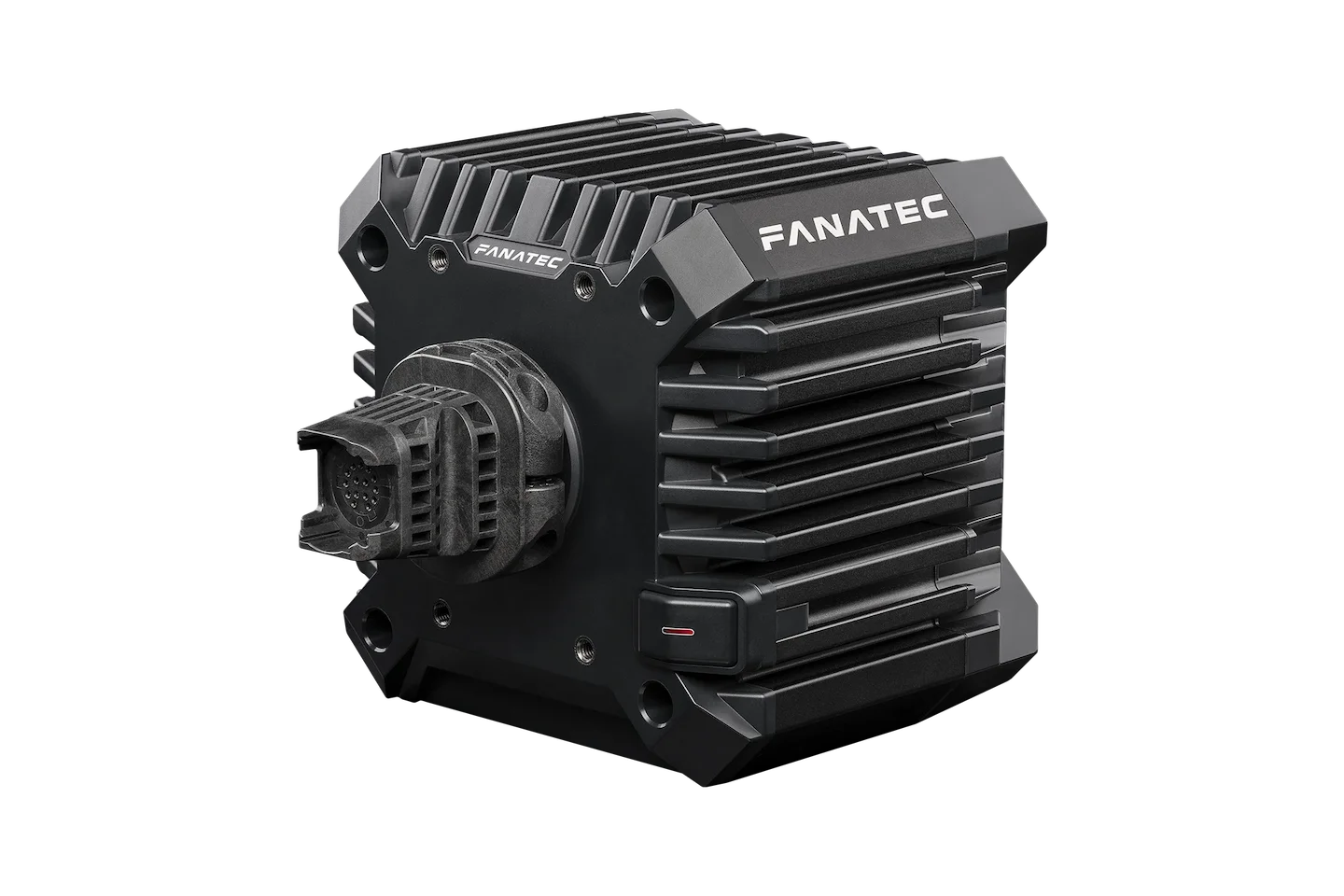

CSL DD QR2:
- Direct-Drive system delivers instant, detailed force feedback
- Boost Kit 180 included
- Linear, consistent performance (8 Nm peak torque)
- Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
- QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fibre-reinforced polyamide construction
- Exchangeable
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5 to 60 mm table thickness
- Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

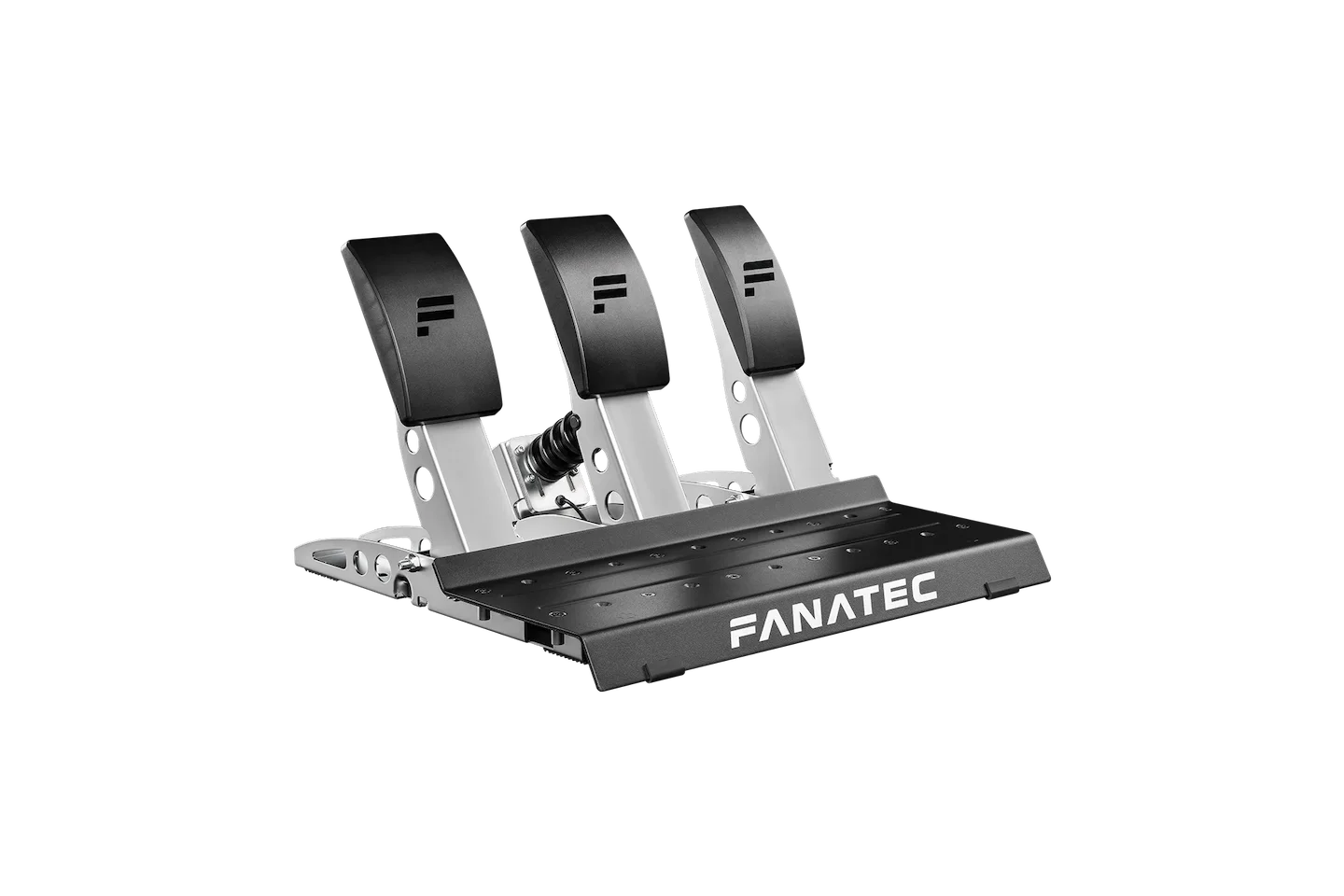

CSL Pedals + CSL Pedals Load Cell Kit:
- Three-pedal set (clutch, brake, throttle)
- All-metal construction (excluding pedal faces)
- Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
- Contactless Hall sensors (12-bit) on both clutch and throttle for high precision and durability
- Clutch pedal spring is stiffer than throttle pedal spring
- Pedal position can be adjusted sideways along heel rest
- Height-adjustable pedal faces
- Modular design means inverted mounting to a rig is possible
- Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
- Pearl chrome plating on pedal bases and arms
- Black powder coating on heel rest
- Custom-designed load cell sensor
- 12-bit precision
- Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)
- Heavy-duty elastomer stack with 65 Shore hardness
- Upgraded electronics
- USB or RJ12 connection (USB means you can use the CSL Pedals as a standalone USB device on PC)
- Manual calibration of Min and Max values possible, settings saved to the internal memory
- Pedals connect directly to CSL DD
Compatibility
Peripherals
The CSL DD QR2 Wheel-Base is compatible with:
- All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- Fanatec ClubSport Shifters (including ClubSport Static Shifter Paddles)
- Fanatec ClubSport Handbrakes
- Fanatec Cockpits
- ClubSport DD Table Clamp
- CSL DD Table Clamp
- ClubSport Table Clamp V2
- Boost Kit 180
- Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Platforms
- PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
- Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
- PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
Tech Specs
| Platform | PC |
|---|

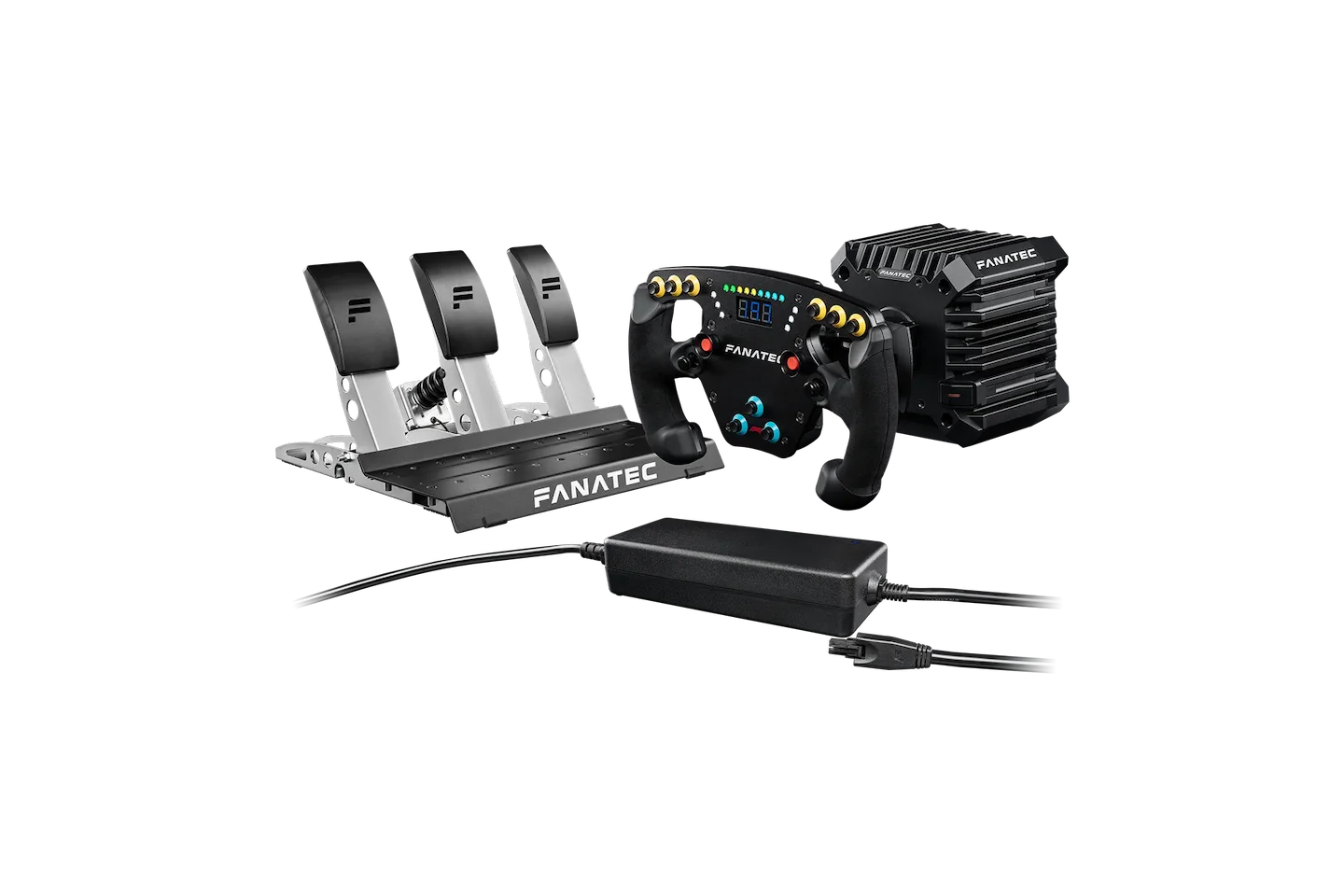

What’s Included
- ClubSport Steering Wheel F1® Esports V2
- QR2 Lite Wheel-Side (must be installed before use)
- CSL DD Wheel Base
- QR2 Lite Base-Side (preinstalled)
- Boost Kit 180
- CSL Pedals
- CSL Pedals Load Cell Kit
Special Notes
- Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
- Partial returns are not be possible for (limited time) deals, discounts or offers.
- The QR2 Lite Base-Side (Type-C) included with the CSL DD QR2 is compatible with all versions of the QR2 Wheel-Side (Lite, Regular, Pro) and does not cause any torque restriction, even with the Boost Kit 180.
- In order to enable features such as Steering Wheel LEDs in some titles, it may be necessary to switch the CSL DD to Compatibility Mode. This can also help with titles not working in standard PC mode. Check the Quick Guide for details.
- Only the standard 90W power supply or the Boost Kit 180 can be used with this Wheel Base. The use of any other power supply will void the Wheel Base warranty, is potentially dangerous and can lead to serious injury or death.
